Soldier Course
A Soldier Course is created by laying the bricks on end, side by side. The standard practice of this style of brickwork is to be applied to openings in the facade aswell as being used to create a horizontal detail band course around a building.
Detail band applications
Distinguishes openings of facade
Conceals construction elements
Unique bond pattern applications
Loading...
Loading...
SD.1 Soldier External Return Type No. A B
Product Specification
Type No.abc
SD.1.1
215
65
65
SD.1.2
215
102
102
SD.1.Custom
Cut to your specification
Cut to your specification
Cut to your specification
Available in our Full Colour Range
SD.2 Soldier Internal Return To Single Cant On End
Product Specification
Type No.abcde
SD.2.1
215
102
102
46
159
SD.2.2
215
102
102
60
173
Available in our Full Colour Range
SD.3 Soldier External Return To Single Cant On End
Product Specification
Type No.abcde
SD.3.1
215
102
102
46
159
SD.3.2
215
102
102
60
173
SD3.Custom
As Required
As Required
As Required
As Required
As Required
Available in our Full Colour Range
AN.5 Single Cant (Left & Right Hand)
Product Specification
Type No.abcde
AN.5.1
215
102
65
46
159
AN.5.2
215
102
65
60
173
Available in our Full Colour Range
Soldier Bonding Brick
Product Specification
Type No.abc
Soldier Bonding Brick
215
Cut to your specification
Cut to your specification
Available in our Full Colour Range
Soldier Pistol
Product Specification
Type No.abcde
Standard
65
215
25
25
102.5
Custom
65
215
As Requied
As Required
102.5
Available in our Full Colour Range
Soldier Pistol Corner
Product Specification
Type No.abcde
Soldier Pistol Corner
215
Cut to your specification
Cut to your specification
Cut to your specification
Cut to your specification
Available in our Full Colour Range

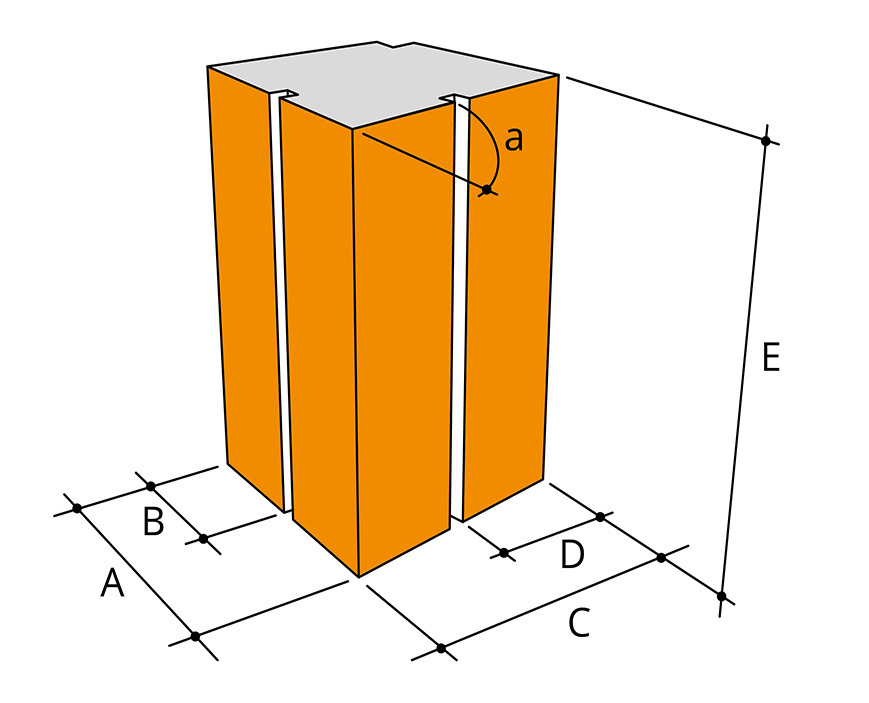

Soldier External Return
Product Specification
Type No.abcdea
ASD4.1
140
65
140
65
215
101
ASD4.2
215
101
ASD4.Custom
As Required
As Required
As Required
As Required
215
As Required
Available in our Full Colour Range
Commonly used on...
Self Build Projects
Apartment Blocks
Schools
Retail Buildings
Residential Developments
